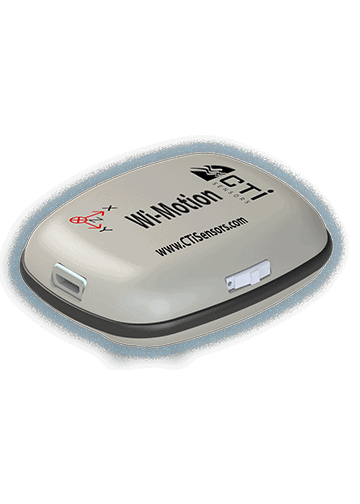

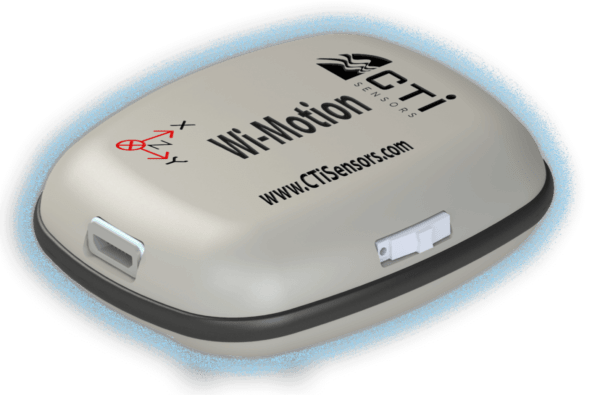

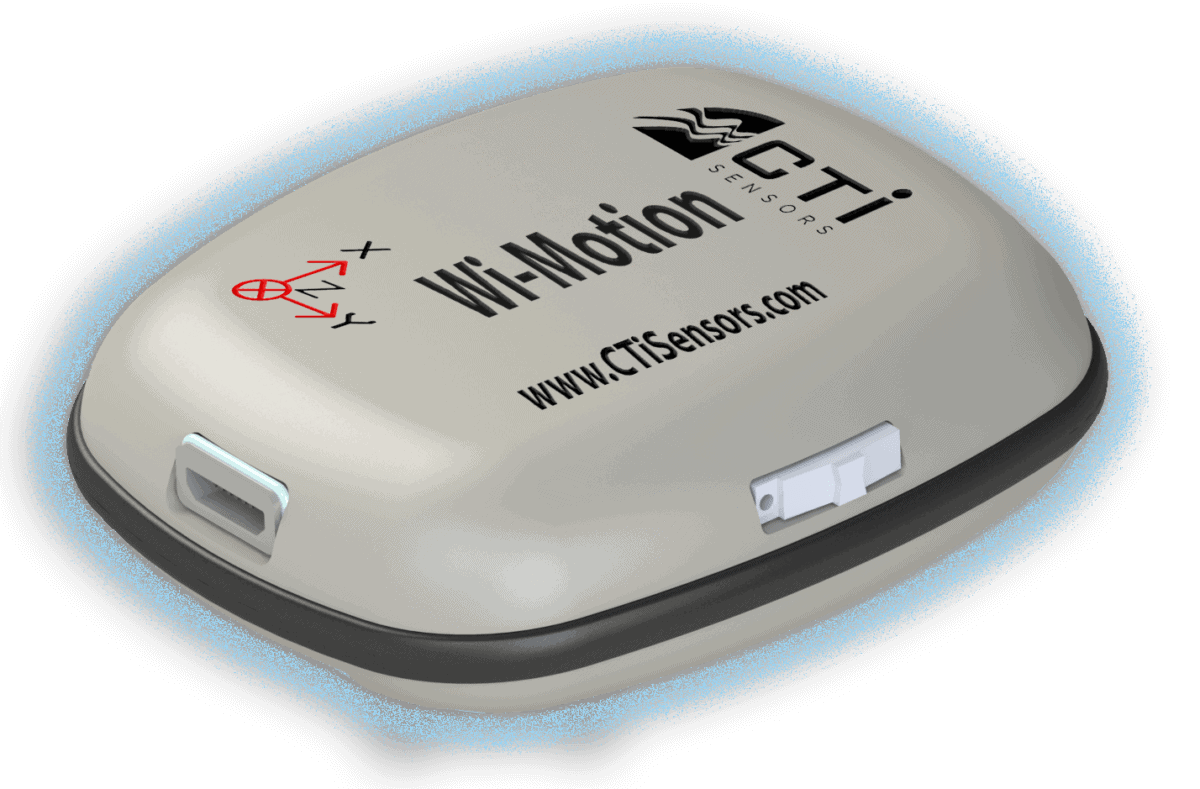

Wi-Motion – Wireless Motion Tracking Device

High precision 10 DOF Wireless Motion Tracking sensor (3-axis acceleration, 3-axis turn rate, 3-axis magnetic field intensity and barometric pressure) will provide full 3-D orientation information based on Euler angles and quaternions.

Product Enquiry

Overview

  • 10 DOF sensor data: 3-axis acceleration, 3-axis turn rate (gyroscope data), 3-axis magnetic field intensity (compass), barometric pressure
  • Full 3-D orientation information (Euler angles and quaternions)
  • BLE 4.2 (Bluetooth Low Energy) wireless link
  • Micro USB charger
  • USB-dongle (receiver) with USB interface (virtual COM port)
  • 64 MHz ARM® Cortex™-M4F 32-bit processor
  • On-board fusion algorithm running at 400 Hz
  • Output data rate up to 200 Hz
  • 18 month limited warranty

Documentations

Download Wi-Motion Product Brief and Catalogue:

Wi-Motion Product Brief

Wi-Motion Catalogue
