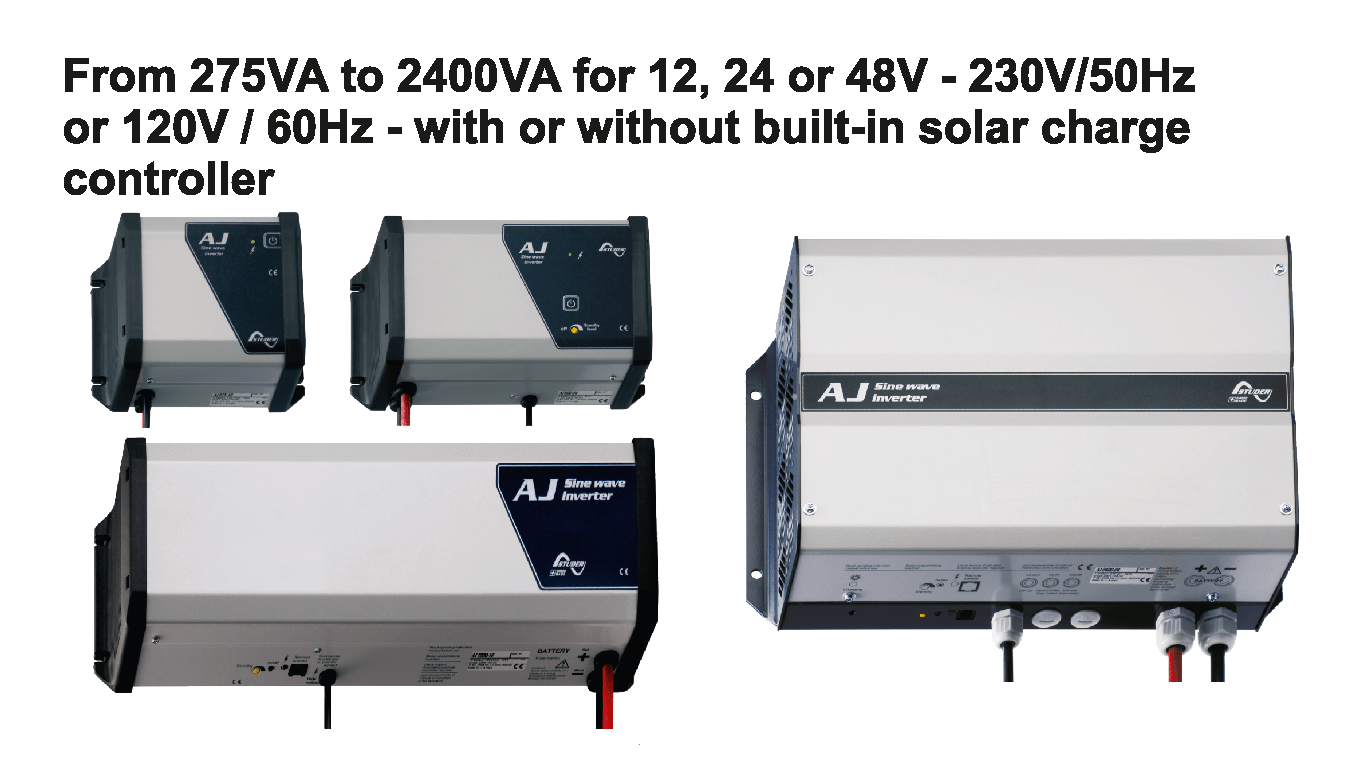

AJ series 0.2-2.4kVA

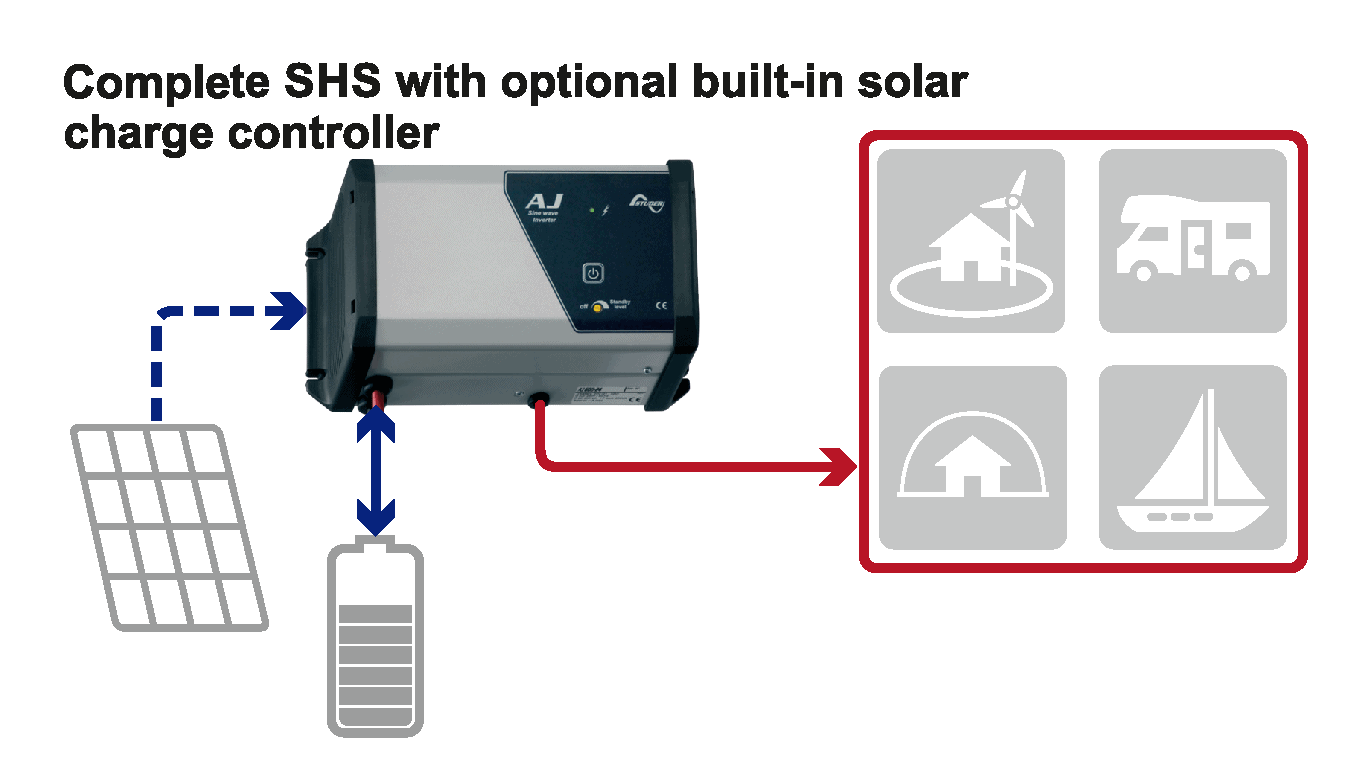

A well-performing range of inverters from 275VA to 2400VA for small to medium sized systems, with an optional built-in PWM solar charge controller. The devices in this series offer low self-consumption, a battery protection algorithm, and compact construction.

Product Enquiry

Overview

Plug and forget
The inverters of the AJ series have been present in the market for many years and have widely demonstrated their superior reliability. Being delivered with AC and DC cables, they are truly “plug and forget” devices.

Self-consumption
In addition to a high surge power capacity, the AJ have a very low self-consumption thanks to a precise and efficient stand-by function. The load detection in stand-by is automatic and adjustable from very small loads.

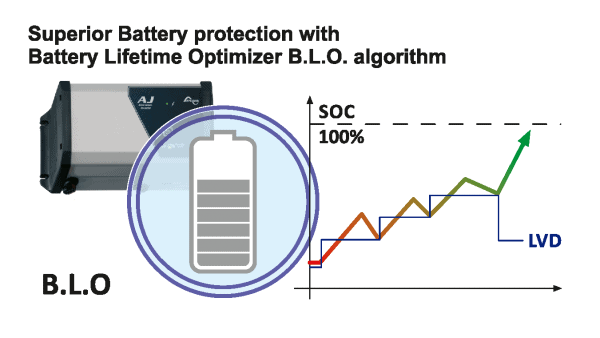

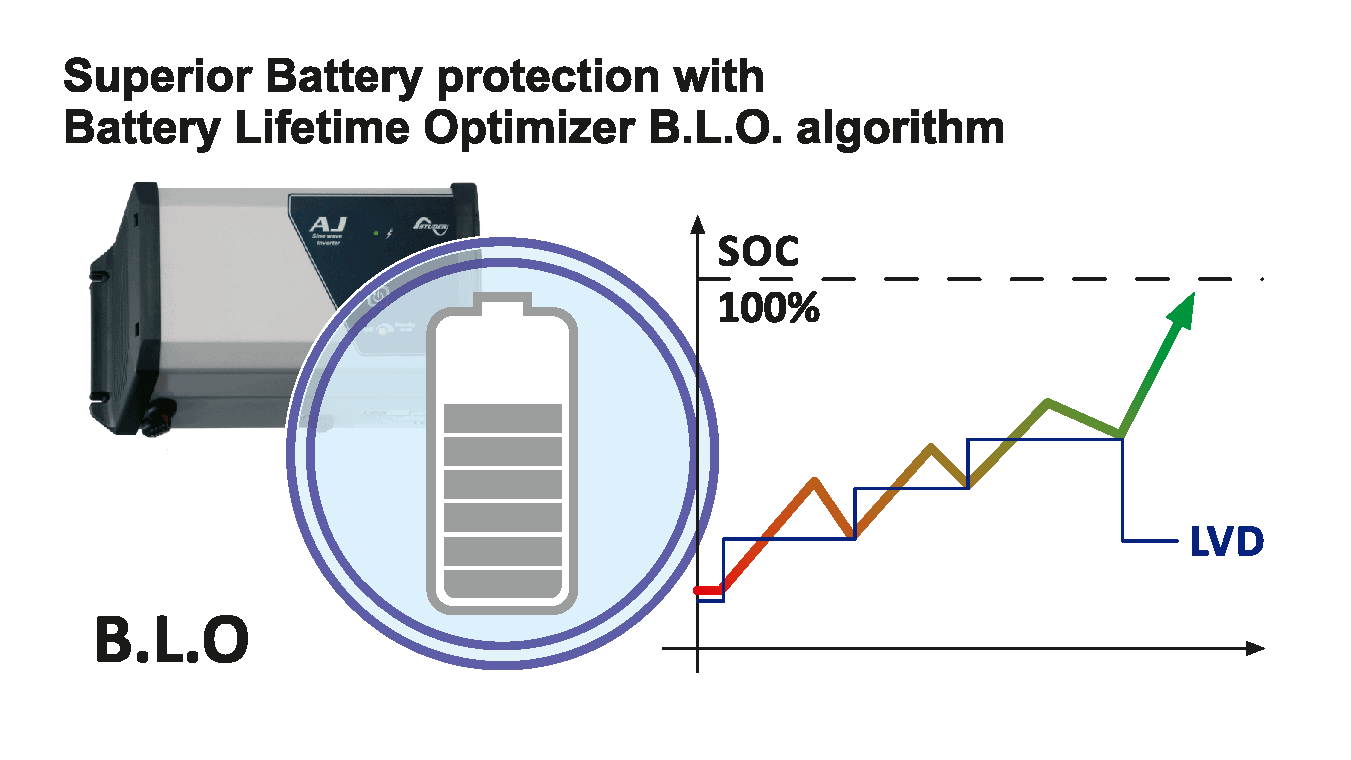

Battery protection
The inverters offer a battery protection function that intelligently manages the low voltage disconnect level as a function of how the battery is being used. The so-called B.L.O (Battery Lifetime Optimizer) protects the battery from repeated deep discharges, thus significantly prolonging the useful life of the battery.

Power P30
/ Pnom [VA]
Battery
voltage Unom [V]
Solar charge
controller current
(opt.) Imax [A]
AJ 275-12275 / 2001210
AJ 350-24350 / 3002410
AJ 400-48400 / 3004810
AJ 500-12500 / 4001215
AJ 600-24600 / 5002415
AJ 700-48700 / 5004815
AJ 1000-121000 / 8001225
AJ 1300-241300 / 10002425
AJ 2100-122100 / 20001230
AJ 2400-242400 / 20002430

​Features and performances

  • High and steady efficiency
  • Outstanding overload capabilities
  • Digital regulation and control by microprocessor
  • Electrical supply to any type of appliance
  • Full internal protection
  • Stand-by level adjustable from a very low threshold
  • Battery lifetime optimization (B.L.O.) function
  • 5-year warranty

E Certification standard
The AJs in 12 and 24Vdc are certified in accordance with the ECE-R 10 standard. This certification is mandatory in the European Union for all electrical equipment on board transport vehicles.

Accessories

JT8 Remote Control

The JT8 remote control allows an AJ series inverter to be controlled remotely (ON/OFF). One LED displays the state of the system (ON / Standby / Temporary OFF).

For AJ series inverters from 1000-12 to 2400 VA.
Supplied with 5m cable.

Plug for remote control RCM

Connection (socket + plug) enables the start up of an AJ series inverter (models up to AJ 700-48) under specific conditions.

  • RCM 01: ON when a contact is closed
  • RCM 02: ON when a voltage is present on the remote control
  • RCM 03: ON when a contact i open

For AJ series inverters from 275 to 700 VA



Application

Uninterruptible Power Supply on-line with inverter

In this system, the battery charge functions and appliances ‘power supply are separated: On one side is a battery charger, and on the other, an inverter. Grid current fluctuations have no impact on the appliances.

Quality AC voltage for all electrical appliances with an inverter

The inverter supplies, exclusively from a battery, any kind of appliance using AC voltage, without exception. It does converts the battery’s DC voltage into AC voltage at a higher quality than what is available from the public grid.

Technical data

Datasheet

This browser does not support inline PDFs. Please download the PDF to view it


Download PDF Link here.
