TriStar MPPT 600V

Morningstar’s TriStar MPPT 600V charge controller leverages Morningstar’s innovative TrakStar™ MPPT technology and our 20+ years of power electronics engineering excellence, to enable the widest input operating voltage range available from a solar array, wind turbine or hydro input. This controller’s standard and DB versions are for off-grid applications, and the TR versions were developed to enable retrofitting grid-tied systems with battery backup

Product Enquiry

Overview

Morningstar’s TriStar MPPT 600V charge controller leverages Morningstar’s innovative TrakStar™ MPPT technology and our 20+ years of power electronics engineering excellence, to enable the widest input operating voltage range available from a solar array, wind turbine or hydro input. This controller’s standard and DB versions are for off-grid applications, and the TR versions were developed to enable retrofitting grid-tied systems with battery backup: TS-MPPT-60-600V-48 (Standard) TS-MPPT-60-600V-48-DB (With Disconnect Box) TS-MPPT-60-600V-48-DB-TR (With DC Transfer Switch) TS-MPPT-60-600V-48-DB-TR-GFPD (Pre-wired with Ground Fault Protection Device) Rated for 60 Amps, the TriStar MPPT 600V controller does much more than efficiently charge batteries; it also provides remote communications, data logging, adjustability and metering. In fact, the TriStar MPPT 600V controller is the only 600-volt PV controller to offer open communication protocols and true Ethernet-enabled functionality. Key Features & Benefits The TriStar MPPT 600V charge controller delivers high reliability and excellent performance and features: 97.9% peak efficiency. Morningstar’s advanced 4-stage charging algorithm to optimize battery health Robust thermal, mechanical and electrical design Environmentally optimized and equipped with extensive electronic protections Industry standard open communication protocols and interfaces for system networking, monitoring and communications Superior lightning protection from nearby lightning-induced voltage/current spikes Applications The TriStar MPPT 600V charge controller’s high voltage capability and flexible design enable several application scenarios including: Adding modules incrementally with no string sizing issues Off-grid PV systems greater than 150 Voc with long wire runs from the array to the controller New installation grid-tie PV systems with battery back-up Retrofitting string PV inverter systems to later add battery back-up without changing the PV array configuration Battery-based Wind systems Water pumping applications.

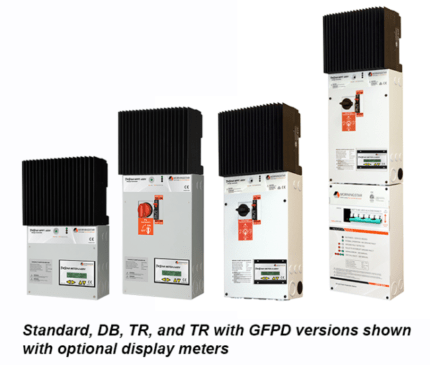

Versions

  • TS-MPPT-60-600V-48
    (Standard)
  • TS-MPPT-60-600V-48-DB
    (With Disconnect Box)
  • TS-MPPT-60-600V-48-DB-TR
    (With DC Transfer Switch)
  • TS-MPPT-60-600V-48-DB-TR-GFPD
    (Pre-wired with Ground Fault Protection Device)

Rated for 60 Amps, the TriStar MPPT 600V controller does much more than efficiently charge batteries; it also provides remote communications, data logging, adjustability and metering. In fact, the TriStar MPPT 600V controller is the only 600-volt PV controller to offer open communication protocols and true Ethernet-enabled functionality.

Key Features & Benefits

The TriStar MPPT 600V charge controller delivers high reliability and excellent performance and features:

  • 97.9% peak efficiency.
  • Morningstar’s advanced 4-stage charging algorithm to optimize battery health
  • Robust thermal, mechanical and electrical design
  • Environmentally optimized and equipped with extensive electronic protections
  • Industry standard open communication protocols and interfaces for system networking, monitoring and communications
  • Superior lightning protection from nearby lightning-induced voltage/current spikes

Applications

The TriStar MPPT 600V charge controller’s high voltage capability and flexible design enable several application scenarios including:

  • Adding modules incrementally with no string sizing issues
  • Off-grid PV systems greater than 150 Voc with long wire runs from the array to the controller
  • New installation grid-tie PV systems with battery back-up
  • Retrofitting string PV inverter systems to later add battery back-up without changing the PV array configuration
  • Battery-based Wind systems
  • Water pumping applications
