TILT-15 OEM Series – Dual Axis Inclinometer with Analog & Digital Output

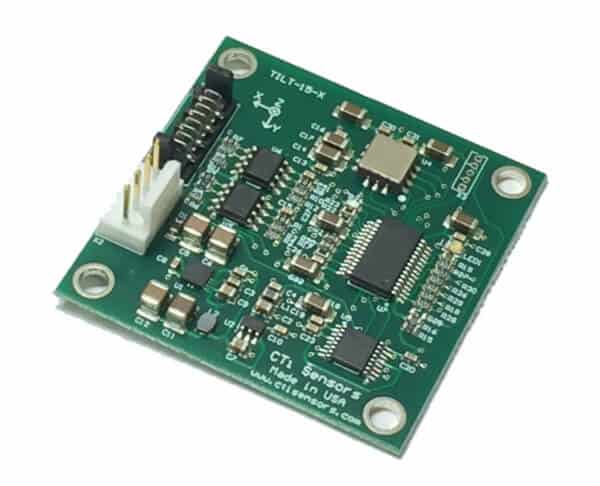

The TILT-15 series inclinometer / tilt sensor module is a high accuracy, dual axis inclinometer (or inclination sensor) that employs the latest accelerometer technology in the form of miniature MEMS inclinometer sensors.

CTi Sensors’ TILT-15 Original Equipment Manufacturer (OEM) is a full calibrated, small board level, dual axis inclinometer which provides excellent accuracy over the full operating temperature range. The TILT-15 is available with both analog voltage output (0.3 to 4.7 V), and digital TTL UART. The programmable bandwidth allows the optimal measurement for a wide range of dynamic operations.

Product Enquiry

Overview

  • Size: 1.77” x 1.77” (45 x 45 mm)
  • Analog and digital output signals
  • Measuring range, dual axis: ±5° to ±90°
  • High accuracy: 0.05° (RMS)
  • High resolution: 0.005° (RMS)
  • Ultra low noise: 0.002° (@5 Hz)
  • Very low temperature offset drift: ±0.0015°/°C (Typical)

Specifications

 TILT-15-X TILT-15-S
Power source3.8 – 18 VDC3.8 – 18 VDC
Power consumption20 ± 2 mA (@ 5 V)20 ± 2 mA (@ 5 V)
Measuring range±5°, ±10°, ±15°, ±30°, ±45°, ±90°(two-dimensional)±5°, ±10°, ±15°, ±30°, ±45°, ±90°(two-dimensional)
Resolution0.005° (Typical)0.05° (Typical)
Accuracy0.05° (Typical), 0.15° (Maximum error in full range)0.15° (Typical), 0.3° (Maximum error in full range)
Zero offset error< ±0.05° (@20°C)< ±0.1° (@20°C)
Temperature offset drift±0.0015°/°C (Typical)

±0.003°/°C (Maximum)

±0.01°/°C (Typical)
Noise density0.001°/√Hz0.02°/√Hz
Nonlinearity0.1 % FS0.3 % FS

Digital Output

TILT-15-XTILT-15-S
Serial interfaces3.3V TTL UART3.3V TTL UART
Baud rate2.4kbps – 921.6kbps selectable, default: 115.2kbps2.4kbps – 921.6kbps selectable, default: 115.2kbps
Data formatASCII, port settings: 1 start bit, 8 data bits, 1 stop bit & no parityASCII, port settings: 1 start bit, 8 data bits, 1 stop bit & no parity
Output
data rate

.
1, 2, 5, 10, 20, 50, 100 & 200 Hz selectable

1, 2, 5, 10, 20, 50, 100 & 200 Hz selectable

LED indicators

.
Data transmission rate
Flashing at current data rate

Data transmission rate
Flashing at current data rate

GUI software

.
WinCTi-Tilt®

WinCTi-Tilt®

Temperature sensor resolution

0.2°C

1°C

.
Operating Temperature

.
-25°C to +80°C (-13°F to +176°F)

-25°C to +80°C (-13°F to +176°F)

Analog Output

TILT-15-XTILT-15-S
Analog voltage output0.3 V to 4.7 V0.3 V to 4.7 V
Sensitivity150 mV/° :  range ≤±15°
34 mV/° :  ±30° ≤ range ≤±60°
25 mV/° :  ±90° full range
150 mV/° :  range ≤±15°
34 mV/° :  ±30° ≤ range ≤±60°
25 mV/° :  ±90° full range
Reference voltage output2.5 ±0.005 V2.5 ±0.005 V

Documentations

Download TILT-15  Datasheet through:

TILT – 15-X Datasheet

TILT – 15-S Datasheet

Software

To download the GUI software either use the first link, unzip the folder, and run WinCTi.exe or download the portable version (single file), just unzip and run WinCTiP.exe.

Download WinCTi-Tilt

Download WinCTi-Tilt Portable
