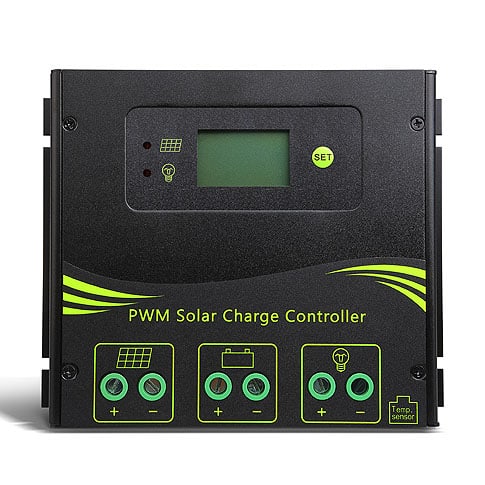

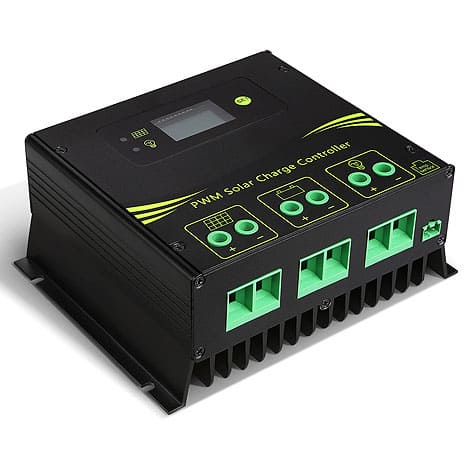

SR-LG4860 – PWM SOLAR CHARGE CONTROLLER (12/24/36/48V, 60A)

Product Enquiry

FEATURES

  • Common cathode design adopted.
  • LCD screen for displaying system working status and parameters.
  • Adjustable charge and discharge controlling parameter.
  • Boost Charge mode auto shifts on when the battery voltage is lower than boost charge return voltage.
  • Double temperature sensors design, inner sensor for inside temperature detection, and the outer independent sensor for detecting battery temperature which makes the battery temperature compensation more precise.
  • The controller can work out daily battery charging and discharging capacity which makes it more convenient to evaluate controllers and the whole system.
  • It possesses overcurrent protection when charging which can decrease the charging current so as to protect the charge circuit if it exceeds the rated current.
  • It will proceed equalizing charge every 30 days to protect the battery from vulcanizing.
  • Industrial grade chips and precision components adopted which can work under cold, hot and moist conditions.
  • Double MOS in series circuit adopted in charge circuit, PWM charging control to improve charge efficiency.
  • Power-fail protection for saving tech data which makes the system operation more reliable.
  • 3 different load working modes: Pure light control, Lighting + Timing control, load open all time.

SPECIFICATIONS

ParameterValueAdjustableDefault
System voltage12V/24V/36V/48V48V
Rate charging current60A
Rate discharging current60A
No load loss<25mA
Charging circuit voltage dropLess or equal to 0.5V
Discharge circuit voltage dropLess or equal to 0.5V
Charging current60A
Load current60A
Solar input voltage<140V
Re-entrant boost charge mode voltage13.2V;×2/24V; ×3/36V; ×4/48V
Over voltage protection17.0V;×2/24V; ×3/36V; ×4/48V
limited voltage for charging15.5V;×2/24V; ×3/36V; ×4/48V
Equal charging voltageBoost charge voltage +0.5V
Equal charging interval30days
Direct charge voltage14.8V、14.6V、14.4V、14.2V、14.0V

×2/24V; ×3/36V; ×4/48V

14.4V
Float charge voltage13.8V、13.6V、13.4V、13.2V、13.0V

×2/24V; ×3/36V; ×4/48V

13.8V
Over discharge voltage12.0V、11.8V、11.5V、11.0V、10.5V

×2/24V; ×3/36V; ×4/48V

11.0V
Over discharge recover voltage13.5V、13.0V、12.8V、12.5V、12.2V

×2/24V; ×3/36V; ×4/48V

12.5V
Lower voltage indicationOver discharge voltage +0.5V
Equal charging time1H
Boost voltage charging time1H-5H2H
Temperature compensation-3.0mv/℃/2V
Light-control voltage8V
Light control delay10min
Controller over-temperature protection>90℃
Battery over-temperature protection>55℃
Working temperature-35℃to +85℃
Control methodCharging: PWM
Time of LED back- light auto shut down30s
Data auto transfer time3S
Time of LED lattice closed25S
Weight1.28kg
Dimensions140×90×25(mm)
Installation dimension133.5×69.5(mm)
