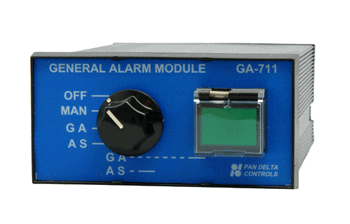

GA-711 / GA-712

GENERAL ALARM SIGNAL GENERATOR MODULE

The GA-711 and GA-712 are Signal Generator modules that generate pulses for General Alarm and Abandon Ship signals. The GA-711 is designed to be dropped into the console while the GA-712 is a DIN-Rail mountable module that is popular with OEMs.

Product Enquiry

Specifications

ModelGA-711GA-712
Input Supply:18 to 32 VDC
LED Indications:Relay On (Green)Power (Green), Relay On (Red)
Modes:Operated by Rotary Switch.

1) Off
2) MANUAL = Operated using Push-button
3) GA = General Alarm (7-Short, 1 Long)
4) AS = Abandon Ship (1-Short, 1 Long)

Operated via volt-free input.

1) Off
2) COM-1 = General Alarm (7 Short, 1 Long)
3) COM-2 = Abandon Ship (1 Short, 1 Long)

Relay Output:SPDT (NO, NC, COM)
2A @ 30 VDC, 0.6A @ 110 VDC, 0.5A @ 125 VAC
(Resistive)
Mounting:Console Mountable (Drop In Type)DIN-Rail Mountable
Dimensions:H48 x W96 x D140 mmH112 x W55 x D73 mm
Weight:180 g200 g

Ordering Information (Parts Number)

  • GA-711: General Alarm Module (Console Mountable)
  • GA-712: General Alarm Signal Generator Module (DIN-Rail Mountable)
