- Multi-purpose charger for Lead Acid Batteries
- Soft start for increased charger life
- Automatic two rate charging (Boost and Trickle)
- Regulated and current limited
- Suitable for internal switchboard mounting
- Easy to install

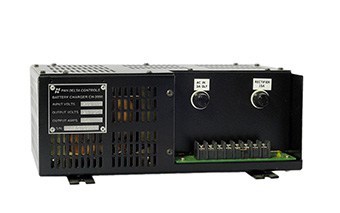

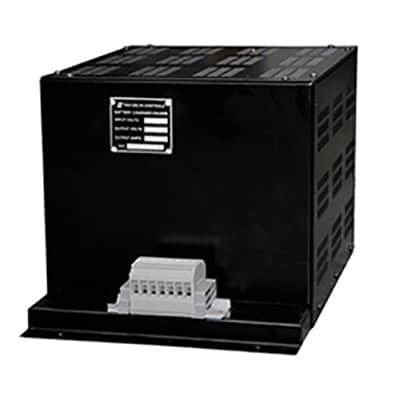

MULTI-PURPOSE & STANDBY GENERATOR BATTERY CHARGER
CH2000
The CH-2000 automatic standby generator battery charger is a multi-purpose lead acid battery charger suitable for charging either 12 or 24 Volt batteries. Charge current ranges from 5 to 20 Amps.
Please contact us if you require chargers with higher current outputs (up to 24 Volts 80 Amps possible).
Connection Diagram
Dimensions
Applications
Suitable for charging batteries used with intermittent loads such as switch-gears or engine starting
Specifications
CH2000 | CH2000 (1210) | CH2000 (2405) | CH2000 (2410) | CH2000 (2415) | CH2000 (2420) | |
| Charger Type | Constant Voltage, Thyristor Controlled | |||||
| Charge Characteristic | 2 Steps (Boost & Trickle Charge) | |||||
| Input Voltage | 230 VAC (Other voltages, e.g. 110VAC available on request) | |||||
| Input Frequency | 50 – 60 Hz | |||||
| Charge Current (Nominal) | 5 Amps | 10 Amps | 5 Amps | 10 Amps | 15 Amps | 20 Amps |
| Boost Voltage | 14 V | 28 V | ||||
| Float Voltage | 13.5 V | 26.3 V | ||||
| Regulation (Input Variation) | +/- 2% for Load Variation of 0 to 100% | |||||
| Protection | Current Limiting, Fuses (Incoming and Outgoing) | |||||
| Indicator Lights | Boost Indicator Light (on controller card) | |||||
| Operating Temperature | -10 to 50 degC (0 to 160 degF) | |||||
| Operating R.H. | 0 to 95% (non-condensing) | |||||
| Dimensions | W270 x H108 x D180 mm | W250 x H250 x D350 mm | ||||
| Weight | 4.5 kg | 5 kg | 4.5 kg | 7.5 kg | 10 kg | 13 kg |
| Warranty | 1 Year Limited Warranty | |||||
Ordering Information
- CH-2000(1205) – 12 Volt 5 Amp Battery Charger
- CH-2000(1210) – 12 Volt 10 Amp Battery Charger
- CH-2000(2405) – 24 Volt 5 Amp Battery Charger
- CH-2000(2410) – 24 Volt 10 Amp Battery Charger
- CH-2000(2415) – 24 Volt 15 Amp Battery Charger
- CH-2000(2420) – 24 Volt 20 Amp Battery Charger
