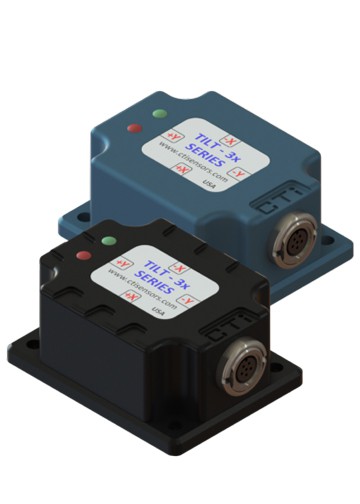

TILT-3x Series – High Precision Inclinometer

The TILT-30A series inclinometer / tilt sensor is a high performance, high resolution single or dual axis digital inclinometer (or inclination sensor) that uses the latest miniature technology in the form of accelerometer MEMS sensors. It is contained within a robust aluminum housing and several interface options such as USB, RS232, RS485, RS422, and 3.3 VTTL UART.

The TILT-30A series is an ideal solution for variety of high performance industrial applications such as Robotic Systems, Automotive Safety Systems, Platform Control and Alignment.

Product Enquiry

Overview

  • High resolution: 0.005° | 0.1 mg
  • High accuracy: error < 0.05°
  • Ultra low noise: ±0.0014°/√Hz
  • Very low temperature offset drift: ±0.003°/°C (Typical)
  • Three-axis accelerometer data
  • Multiple interface options: USB, RS232, RS485 and RS422
  • RS485 multi-drop networked capability
  • Measuring range: two-dimensional: ±90°, one-dimensional : ±180°
  • Low power consumption: <30 mA (@ 5 V)
  • Robust aluminum housing
  • 18 month limited warranty

Industrial Design

Industrial design

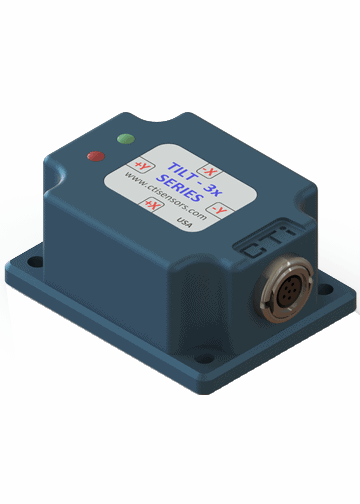

TILT-3X Inclinometer Series benefits from a blue anodized aluminum case. These sensors are tested to satisfy IP67 certification and can temporarily be immersed in 1 meter depth of water.

Versatile interface

Versatile interface

The 6-Pin connectors for TILT-3x Tilt series are IP67 certified and guarantee the consistency of data communication in harsh environments. Output supported protocols are RS232, RS422, RS485, USB, SSI, and wireless

Smart Data Communication

Smart data communication

TILT-3X Inclinometer series benefit from two LEDs that show the communication status of sensors while receiving data, sending data or computing offline.

Specifications

Electrical Specifications

SpecificationsTILT-33ATILT-30A
Power source 4.1 – 38 VDC4.1 – 38 VDC
Measuring Range±90° (two-dimensional)
±180° (one-dimensional)
±90° (two-dimensional)
±180° (one-dimensional)
Resolution<0.005° | 0.1 mg (@ data rate ≤ 5)0.025° | 0.5mg (@data rate ≤ 5)
Accuracy:Horizontal installation

Vertical installation

Err. ≤ ±0.04° (typical), ±0.08°
(maximum error in full range)
Err. < ±0.08° (within ±30° of Vertical)
Err. ≤ ±0.15°
Err. ≤ ±0.15° (within ±30° of Vertical)
Zero offset error< ±0.02° (@20°C)< ±0.05° (@20°C)
Noise density0.0014°/√Hz0.01°/√Hz
Temp. offset drift±0.002° /°C (typical)±0.008° /°C (typical)
Accelerometer range±2 g/±4 g /±8 g selectable±2 g/±4 g selectable
Repeatability< 0.02°< 0.05°
Baud rate2.4kbps – 921.6kbps, default: 115.2kbps2.4kbps – 921.6kbps, default: 115.2kbps
Data formatASCII, similar to NMEA 0183 protocolASCII, similar to NMEA 0183 protocol
Output data rate1, 2, 5, 10, 20, 25, 40, 50, 100, 200, and 500 Hz Selectable1, 2, 5, 10, 20, 25, 40, 50, and 100 Hz Selectable
Power consumption<30 mA (@ 5 V)<30 mA (@ 5 V)
GUI SoftwareWinCTi-Tilt®WinCTi-Tilt®
Interface OptionsRS232, RS422/RS485, USB, ISS, Wireless -RS485 with multi-drop networkedRS232, RS422/RS485, USB, ISS, Wireless -RS485 with multi-drop networked
Temperature sensor resolution0.2°C1°C

Mechanical Specifications

ProtectionIP67 (connector, cable, and housing)
DimensionsL=2.14”, W=1.64”,H= 0.85”
Material
(Optional Cable as a
third party product)
Enclosure: Aluminum
Connector: Brass / Nickel
Cable molded head: TPU
Cable carrier: TPU or Nylon
Conductor insulation: PVC
Temperature range-30°C to +80°C (-22°F to +176°F)
ConnectionCable gland
Connector M8, 6-contact (female)

Documentations

Download TILT-30A Product Brief and Datasheet through:

TILT-30A Product Brief

TILT-30A Datasheet

TILT-33A Product Brief

TILT-33A Datasheet

Software

To download the GUI software either use the first link, unzip the folder, and run WinCTi.exe or download the portable version (single file), just unzip and run WinCTiP.exe.

Download WinCTi-Tilt

Download WinCTi-Tilt Portable

Cables

Cable information:
Male cable M8,6-pin, 1 meter

Male cable M8,6-pin, 2 meters
Male cable M8,6-pin, 3 meters
