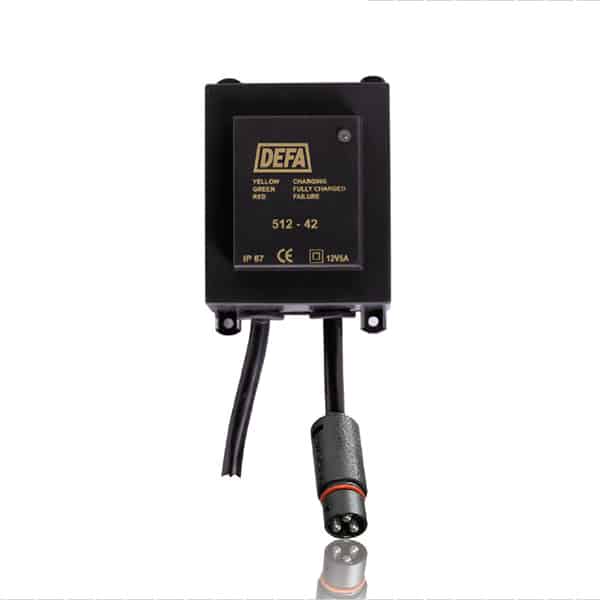

DEFA 700101

LIFEBOAT CHARGER 42VAC – 1X5

A splash protected and compact 1 x 12V maintenance charger for fixed mounting in lifeboats using batteries up to 1 x 100Ah. The charger does not consume power from the battery when it is disconnected 42VAC power.

Product Enquiry

Item Numbers

  • 700101 (With cable for connecting box)
  • 700103 (With DEFA PlugIn)

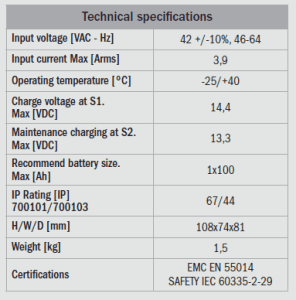

Technical Specifications

Input voltage:42 VAC +/-10%, 46..64 Hz
Input current Max: 3.9 Arms
Operating temperature: -25..+40 degC
Charge voltage at S1:14.4 VDC
Maintenance charging at S2:13.3 VDC
Recommend battery size:1 x 100 Ah
IP Rating:IP-67 (for 700101)
IP-44 (for 700103)
Dimensions:H108 x W74 x D81mm
Weight:1.5 kg
Certifications:EMC EN 55014EMC EN 55014
SAFETY IEC 60335-2-29

DEFA AS is conforming to the requirements of both ISO 9001-2008, ISO 14001:2004 and OHSAS 18001:2007. In addition to this, our engine heaters and cables are conforming to the requirements of ISO/TS 16949:2002.

Use & Installation

Equipment damage and possible injuries may result from an incomplete
understanding of the installation and operation of the charger.
If you are unfamiliar with electrical systems: consult us, a dealer or
a licensed electrician. Read the mounting and user guide carefully.

Datasheet

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
