EMERGENCY ENGINE ORDER TELEGRAPH

EOT-706 / EOT-800

The Engine Order Telegraph (EOT) is a piece of equipment used to communicate speed orders from the Wheelhouse/Bridge to the Engine Control Room (ECR) or Engine Room as well as receive replies from the ECR/ER to Wheelhouse.



Product Enquiry

Features

  • Single or twin screw operation. Triple or Quadrable screw configurations also possible
  • Multiple stations
  • Reliable Bi-directional RS-485 serial communication between stations
  • Auto dimmer
  • Membrane keypad
  • Lamp test
  • Voyage Data Recorder (VDR) Interface available (NMEA or MODBUS Serial)
  • Sounder and Flasher (Engine Room Panel)
  • Rugged Design & Construction

Operations

Commands are initiated by pressing the respective command buttons on the wheelhouse panel. These commands are transmitted via a two-wire serial interface to the engine room panel. The engine room stations will blink the corresponding LEDs and activate the beacon and siren until the command is acknowledged. The LED will then stop blinking and the alarm is muted.

Specifications

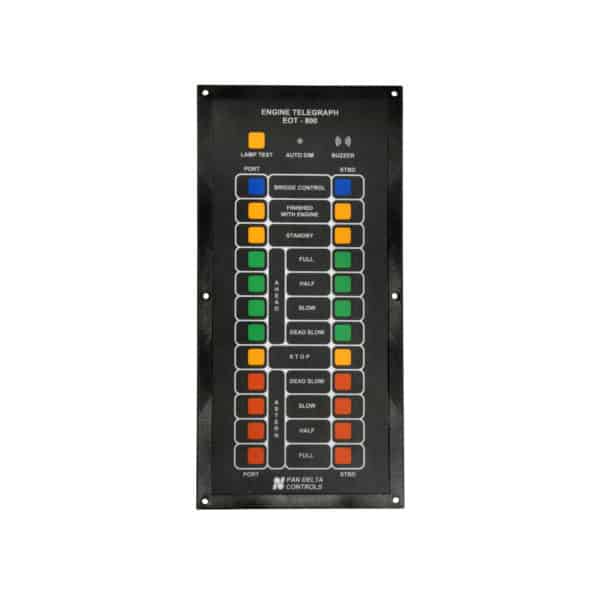

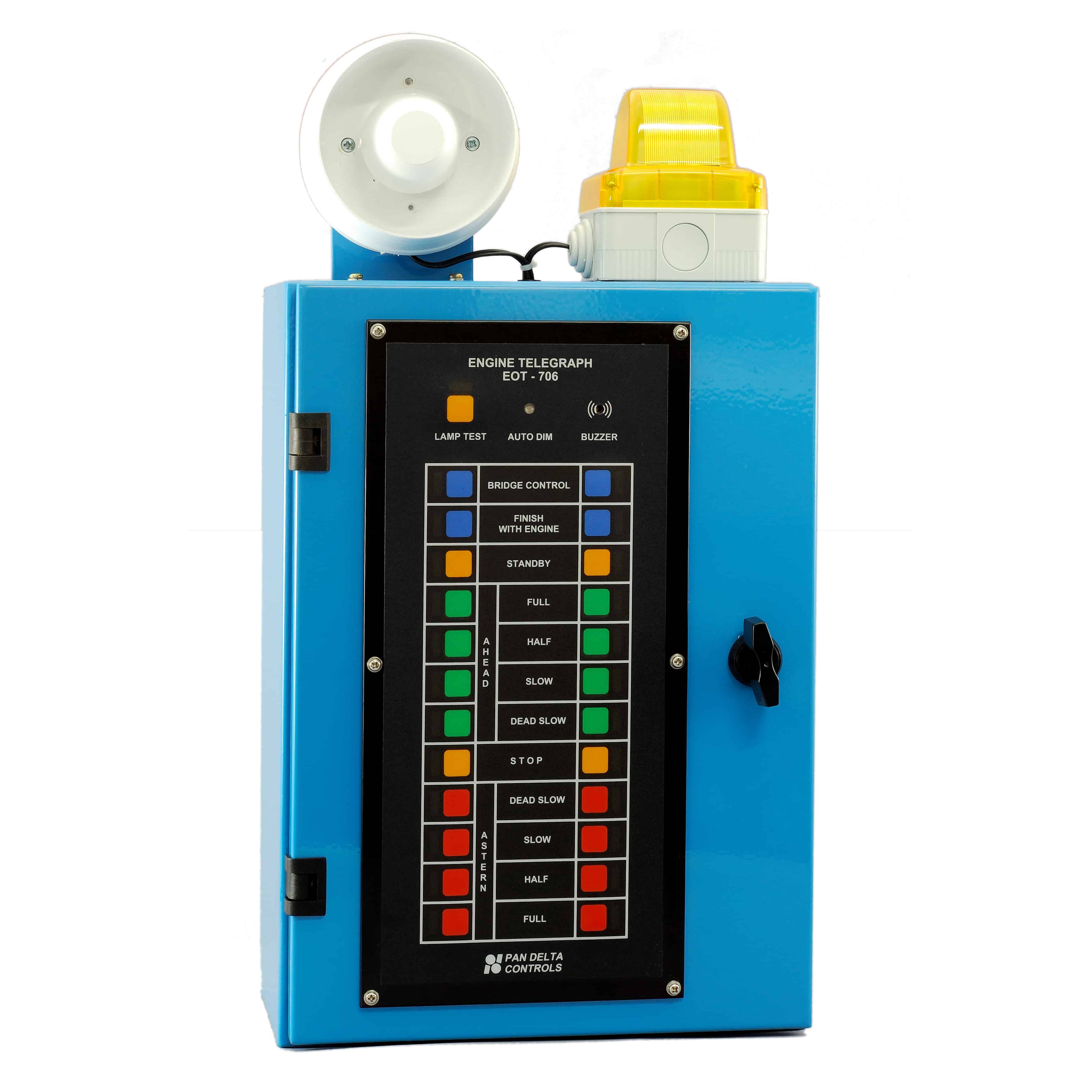

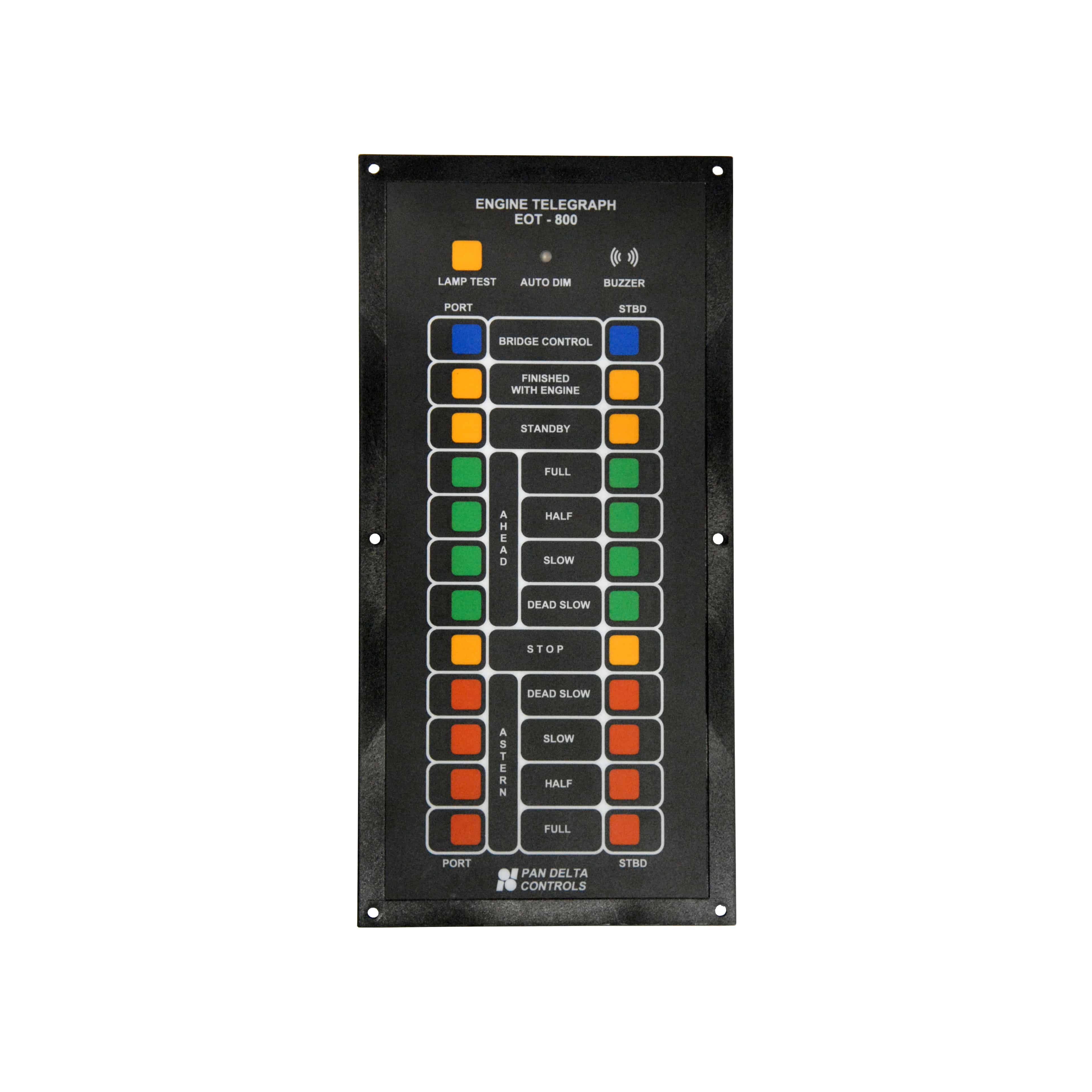

ModelEOT-706(WH,ECR) / EOT-800 (WH-ECR)EOT-706(ER) / EOT-800(ER)
Power Supply:24 VDC
Commands/Orders10 + 2 Orders
Full Ahead
Half Ahead
Slow Ahead
Dead Slow Ahead
Stop
Finished with Engine
Dead Slow Astern
Slow Astern
Half Astern
Full AsternBridge Control
Standby
Functions:Lamp Test, Auto Dimmer
Alarm Type:Visual Indication (LED), Audible Alarm (Buzzer)Visual Indication (LED), Audible Alarm (Sounder)
Protection:Fused, Communication Link Failure Notification
Communication Type:Bi-Directional RS-485 Serial Communication Link
(Proprietary Protocol)
Operating Temperature:-20 to 50 degC
Operating Relative Humidity:0 to 95% (Non-Condensing)
Finishing:Matt-Black, Poly-Carbonate LaminateEOT: Matt-Black Poly-Carbonate Laminate
Encloure: Mild-Steel, Epoxy Powder-Coated (Blue)
Mounting:Flush MountBulkhead / Wall-Mount
Dimensions:H310 x W150 x D30 mmH470 x W250 x D150 mm
Weight:0.6 kg5 kg
Model EOT-706(VDR)
VDR Interface Module
(Voltage Output)
EOT-800(VDRD)
VDR Interface Module
(IEC-61162-1 Output)
EOT-800(VDRM)
VDR Interface Module
(Modbus Output)
Operating Voltage:24 VDC24 VDC24 VDC
Output to VDR:Output Type: Voltage



Full Ahead = +9.0 VDC
Half Ahead = +7.5 VDC
Slow Ahead = +6.0 VDC
Dead Slow Ahead = +4.5 VDC
Finished with Engine = +3.0 VDC
Bridge Control = +1.5 VDC
Idle/Acknowledged = 0 VDC
Standby = -1.5 VDC
Stop = -3.0 VDC
Dead Slow Astern = -4.5 VDC
Slow Astern = -6.0 VDC
Half Astern = -7.5 VDC
Full Astern = -9.0 VDC

 Output Type: IEC-61162-1

Supported VDR Sentences: ETL, EVE, GEN
Connector: Screw-Type Wire Terminals

Output Type: Serial Modbus
 Weight:0.8 kg0.8 kg0.8 kg
