ENGINEERED TO PERFORM, THE ULTIMAKER 2+ IS RELIABLE, EFFICIENT, AND USER-FRIENDLY. THANKS TO ITS SUPPORT OF A WIDE RANGE OF MATERIALS, IT’S SUITABLE FOR A HUGE VARIETY OF APPLICATIONS, FROM PROTOTYPES TO CUSTOMIZED TOOLS. IT’S A GREAT ALL-AROUND 3D PRINTER THAT DELIVERS CONSISTENT RESULTS.
Build Volume: 223 x 223 x 305mm
Materials: Open filament system, optimized for PLA, ABS. CPE, CPE+, PC, Nylon, TPU 95A
Layer Resolution: 600 microns down to 20 micron
Build Speed: Up to 24mm³/s
Travel Speed: Up to 300mm/s
DIMENSIONS AND WEIGHT WITH BOWDEN TUBE & SPOOL: 342 X 493 X 688 MM
WEIGHT: 12.3 KG
BUILD VOLUME: 223 X 223 X 305 MM
| Assembly Type | Pre-assembled | |
| Layer Resolution | 0.25 mm nozzle: 150 to 60 micron 0.40 mm nozzle: 200 to 20 micron 0.60 mm nozzle: 400 to 20 micron 0.80 mm nozzle: 600 to 20 micron | |
| Build plate | 50 °C to 100 °C heated glass build plate | |
| Build plate leveling | Assisted leveling process | |
| Print technology | Fused Deposition Modeling (FDM) | |

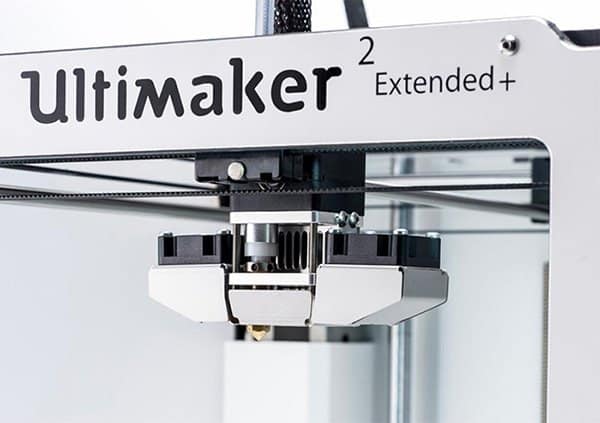

| Print head | Swappable nozzle | |
| Build speed | 0.25 nozzle: up to 8 mm³/s 0.40 nozzle: up to 16 mm³/s 0.60 nozzle: up to 23 mm³/s 0.80 nozzle: up to 24 mm³/s | |
| Print head travel speed | 30 to 300 mm/s | |
| Feeder type | Geared feeder | |
| XYZ accuracy | 12.5, 12.5, 5 micron | |
| Nozzle diameter | Included are 0.25, 0.4, 0.6 and 0.8 mm nozzles | |
| Nozzle temperature | 180 °C to 260 °C | |
| Nozzle heat up time | ~ 1 minute | |
| Build plate heat up time | < 4 minutes | |
| Operating sound | 50 dBA | |
| MATERIALS | ||
| System | Open filament system | |
| Filament diameter | 2.85 mm | |
| Supported materials | PLA, ABS, CPE, CPE+, PC, Nylon, TPU 95A | |
| Ultimaker filament | A spool of Ultimaker filament is 750 g | |
| REQUIREMENTS | ||
| Software | Cura, our free print preparation software | |
| Supported OS | Free on macOS, Windows and Linux | |
| Supported file types | STL, OBJ and AMF | |
| File transfer | Standalone 3D printing from SD card (included | |
| Operating ambient temperature | 15 °C to 32 °C (59 °F to 90 °F) | |
| Nonoperating temperature | 0 °C to 32 °C (32 °F to 90 °F) I | |
| Input | 100 – 240V 4A, 50-60Hz 221 W max. | |
| Output | 24 V DC, 9.2 A |
