NAVIGATION LIGHT CONTROL PANEL

NAV1560 – DC/AC

Navigation Lights indicate the size of the ship, angle, direction of travel and whether the ship is anchored. As they are critical to safety, it is necessary to monitor the filament of the lamps to ensure they are functioning correctly.



Product Enquiry

Overview

The NAV1560 Navigation Light Control Panel is able to control and monitor both AC and DC navigation lamps and can be customized to suit marine vessels of any type and size.

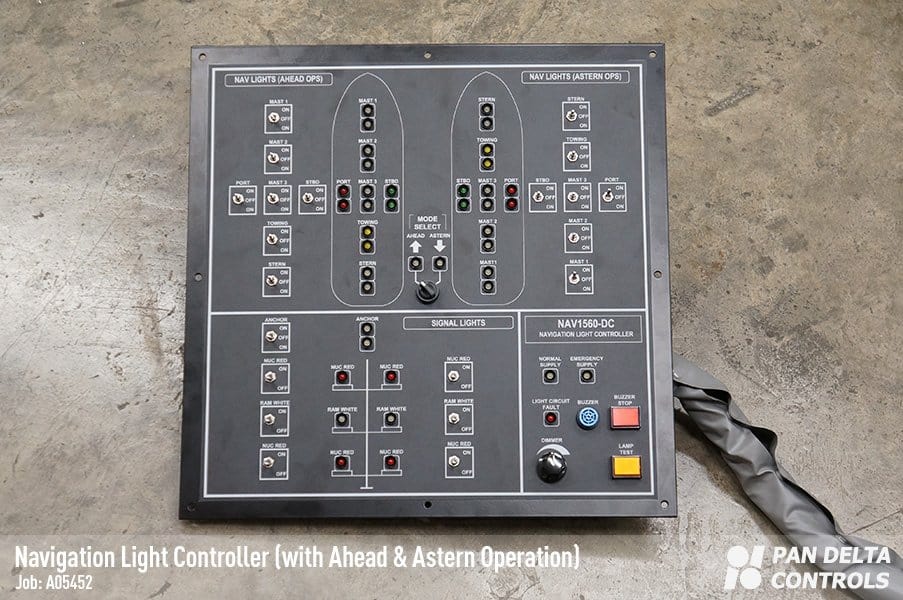

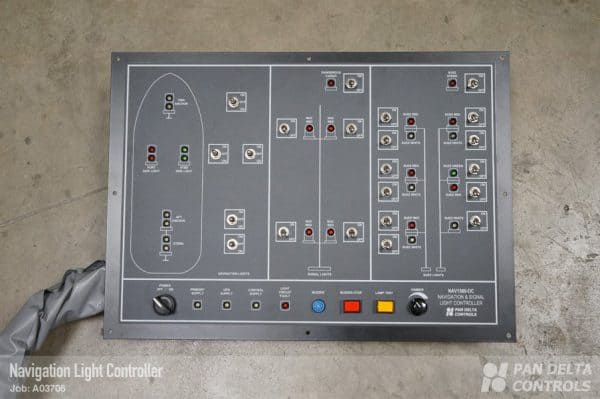

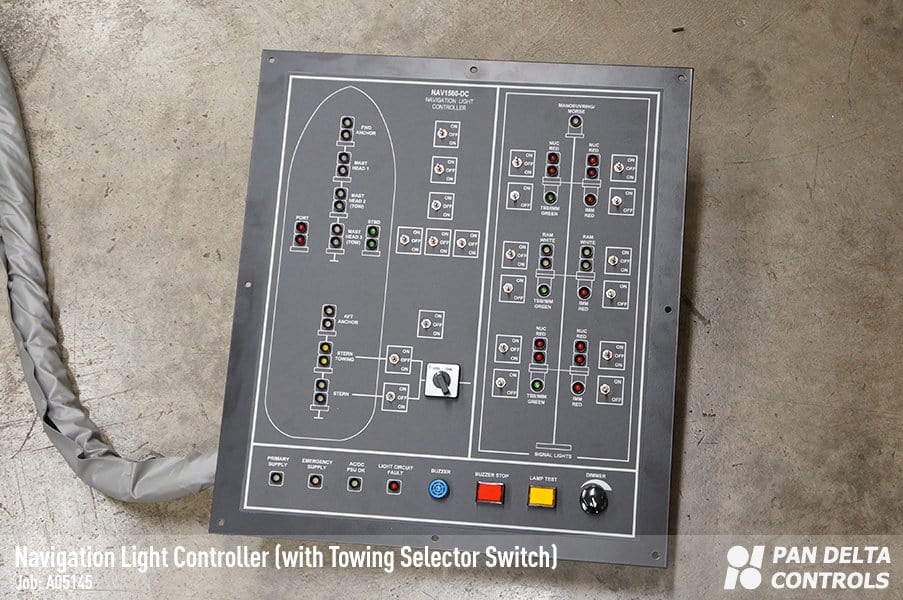

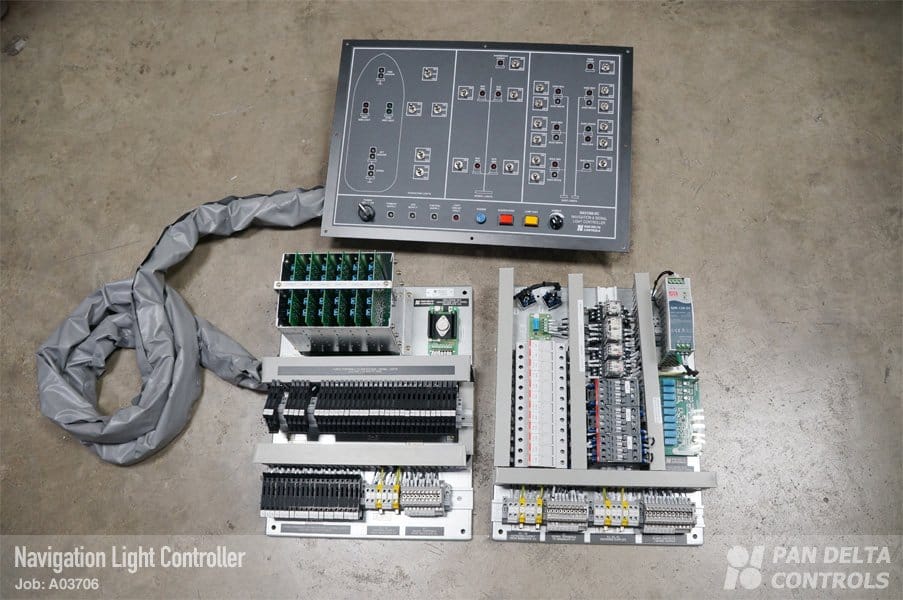

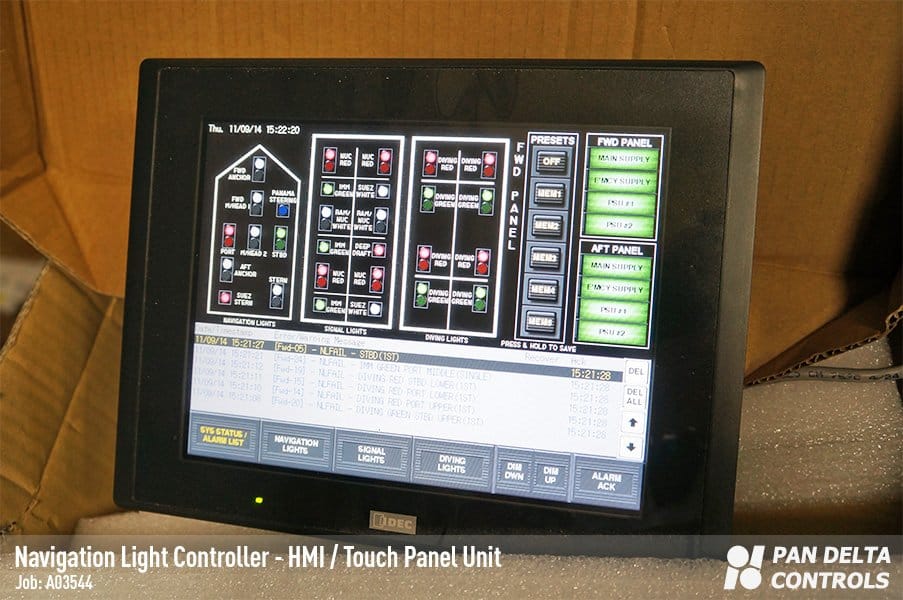

The NAV1560 consists of a mimic panel and a main panel. The mimic panel allows the user to monitor lamp status/faults as well as turn the navigation lights on/off. The control panel contains the monitoring modules, fuses and connectors.

Pan Delta Controls Pte Ltd has been building Navigation Light Panels/Controllers for more than 20 years and we have hundreds of panels in service worldwide. Even more impressive is the fact that spare parts for our 1st generation panels are still available today.

Features

  • Highly reliable operation.
  • Fully-customizable mimic panel with flush/bulkhead mounting option.
  • Able to design to meet Safe Return to Port (SRTP) requirements.
  • Compatible with both AC and DC Filament Type Lamps (15 to 60 watts) or LED Type Lamps (down to 2 Watts).
  • Lamp Failure Monitoring with audio and visual alarm on lamp failure.
  • Two-Tier light system for critical navigational lights.
  • Dual power supply (Main/Emergency) with status indicator LEDs and alarm.
  • Dimmer, lamp test and buzzer stop functions.
  • Summary Contacts for Power Status and Lamp Fault.
  • Easily replaceable monitoring modules (NAV1560-AC/NAV1560-DC).
  • IEC-61162 Serial Output option available.

Operations

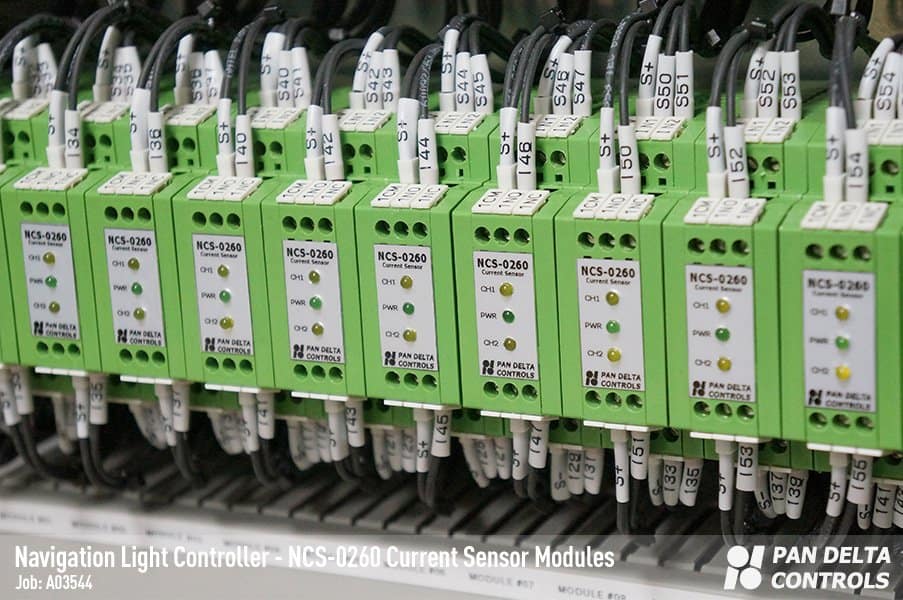

When the user switches on a navigation light using the switches on the mimic panel, power is supplied to the monitoring module and the navigation lamp. The monitoring module (NAV1560-AC/NAV1560-DC) senses the amount of current drawn by the lamp to determine if the bulb filament is intact or blown. If the lamp is functioning properly, the corresponding LED on the mimic panel will illuminate. Otherwise, the corresponding LED will begin flashing and the buzzer will sound to indicate a fault. The user can press the buzzer silence button to acknowledge the fault and mute the buzzer until the next fault is detected. The LED will continue flashing to indicate a fault until the lamp has been replaced or turned off.

Specifications

Model NAV1560AC-NLPNAV1560DC-NLP
DescriptionNavigation Light System with AC Lamp Monitoring Module(s)
(5 channel per module)
Navigation Light System with DC Lamp Monitoring Module(s)
(4 channel per module)
Input SupplyDual Input Supply
Typically 230 or 110 VAC for both Primary and Emergency Supply
Dual Input Supply
Typically 230 or 110 VAC for both Primary and 24 VDC for Emergency Supply
 Sensor TypeCurrent TransformerShunt Resistor (0.1 ohm)
Lamp Rating 2 to 60 Watts (Higher wattage possible upon request)
Compatible with both LED and Filament Type Bulbs
Features
  • Navigation Lamp Filament Monitoring with Status Indication and Failure Alarm
  • Source Failure Alarm
  • Auto Source Changeover
  • Alarm Stop
  • Lamp Test
  • Indication Lamp Dimmer
  • IEC 61162-1 Serial Data Out (optional)
 Connector Type
(To Lights)
DIN-rail mounted Fused Terminal (FDK4)
* All lights are fused at both poles.
 WiringMX/M2X Marine Cables (HFFR)
 Visual Indicators
  • Supply Indicator (Normal and Emergency)
  • Navigation Light Filament Status
 Alarm Type
  • Flashing LEDs (Steady = Normal Operation, Blinking = Fault)
  • Buzzer (with Alarm Stop)
 Protection
  • Fuses
  • Redundant / Dual Input Power Source
Finishing
(Mimic)
  • 2.5mm Aluminium Plate Powder Coated Matt-Black with Poly Carbonate Laminate (White Lettering on Black Background)
Mounting
  • Console Mounted Mimic with 2 metre umbilical cables to base plate panel (mounted under console)
  • Bulkhead mounted panel with Mimic on enclosure door

Spares Ordering Information

For AC Navigation Light Panels

  • NAV1560AC-V5.01 – 5 Channel AC Current Sensor Card for NLPs V5.01 (15-60W)
  • NAVRACK-04(AC) – 4-Way Rack for NLP Current Sensor Modules (AC)
  • NAVRACK-06(AC) – 6-Way Rack for NLP Current Sensor Modules (AC)
  • NAVRACK-08(AC) – 8-Way Rack for NLP Current Sensor Modules (AC)
  • NAVRACK-10(AC) – 10-Way Rack for NLP Current Sensor Modules (AC)

For DC Navigation Light Panels

  • NAV1560DC-V3.06 – 4 Channel DC Current Sensor Card for NLPs V3.06 (15-60W or 2W LED)
  • NAVRACK-04(DC) – 4-Way Rack for NLP Current Sensor Modules (DC)
  • NAVRACK-06(DC) – 6-Way Rack for NLP Current Sensor Modules (DC)
  • NAVRACK-08(DC) – 8-Way Rack for NLP Current Sensor Modules (DC)
  • NAVRACK-10(DC) – 10-Way Rack for NLP Current Sensor Modules (DC)

For AC and DC Navigation Light Panels

  • NAV2PFFL – Alarm / Flasher Card
  • NAV3PFFL – Alarm / Flasher Card
  • NAV4PFFLD – Alarm / Flasher Card with IEC61162-1 Output
  • DIM-50(NEG/PK) – 50W DC Lamp Dimmer (-ve Type) w/ 5k Pot

Older Products

  • NAV1560DC-V3.03 – 4 Channel DC Current Sensor Card for NLPs V3.03 (15-60W) *Replaced by V3.06*
  • NAV1560DC-V3.04 – 4 Channel DC Current Sensor Card for NLPs V3.04 (15-60W) *Replaced by V3.06*
  • NAV1560DC-V3.05 – 4 Channel DC Current Sensor Card for NLPs V3.05 (15-60W) *Replaced by V3.06*
  • DCNAV-AL(25)-V2.00 – 4 Channel DC Current Sensor Card for NLPs V2.00 (25W) *EOL – Replaced by NAV1560DC-V3.03*
  • DCNAV-AL(40/60)-V2.00 – 4 Channel DC Current Sensor Card for NLPs V2.00 (40/60W) *EOL – Replaced by NAV1560DC-V3.03*
  • NAV5V4 – 5 Channel AC Current Sensor Card for NLPs V4.00 *EOL – Replaced by NAV1560AC-V5.01*
  • NAV5V3_110 – 5 Channel AC Current Sensor Card for NLPs V3.00 (110) *EOL*
  • NAV5V3_230 – 5 Channel AC Current Sensor Card for NLPs V3.00 (230) *EOL*
  • DCNAVC(25) – 4 Channel DC Current Sensor Card for NLPs (25W)
  • DCNAVC(40/60) – 4 Channel DC Current Sensor Card for NLPs (40/60W)
