POWER OVER ETHERNET CLOCK (PoE CLOCK) – SYNCHRONISES TO NTP SERVER, TIME ZONE & DAYLIGHT-SAVING CONFIGURATION

We offer PoE clock that is sophisticated and extremely accurate as it synchronizes with a local or internet NTP or SNTP time server to provide an accurate time display (Within 10 ms of UTC). The clock has advanced features such as time zone and daylight-saving time configuration, adjustable brightness levels, brightness scheduling, programmable time switch (32 entries) & more.

Product Enquiry

Standard Features

  • 2.3” or 4” digit heights in red, green or amber
  • Timezone and daylight saving time configuration
  • Adjustable brightness levels
  • Programmable time switch (32 entries)
  • Time synchronisation status
  • Dry-contact output (shared by time switch and sync. status)
  • Wall-mount keyholes or adjustable-angle brackets
  • Configuration by Android app (requires device with BLE capability)
  • PIN and time-based lockout to prevent unauthorised re-configuration

Specifications

Power in: 110 – 230 VAC 15 W
Overall dimensions: W580 H200 D70 mm
Chassis: Powder-coat (customer option)

Main digits: 100 mm height
Secondary digits: 15 mm height
Digits colour: Red
Date display: dd-mm-yyyy or mm-dd-yyyy
Temperature range: 0 – 50 degrees Celsius

Colon blink rate: 1 Hz

Auto-dimmer: Yes
Timezone setting: UTC-12 to UTC+14
DST setting: Yes            Accuracy: Within 10 ms of UTC
Backup time accuracy: ±15 s per month (during loss of GPS signal)
Mounting: Wall mount (screw slot)

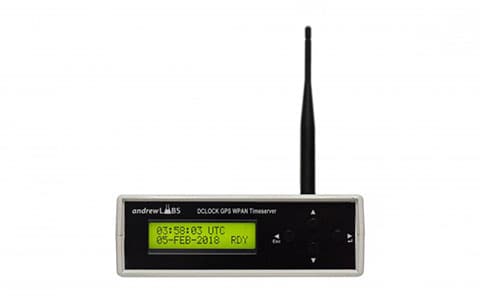

External connection: RJ45 to external GPS-TS receiver (included in package)GPS receiver must have clear view of sky. CAT5e cable to GPS receiver not to exceed 25 m. Total cable run from end to end not to exceed 1,200 m.

System Diagram
