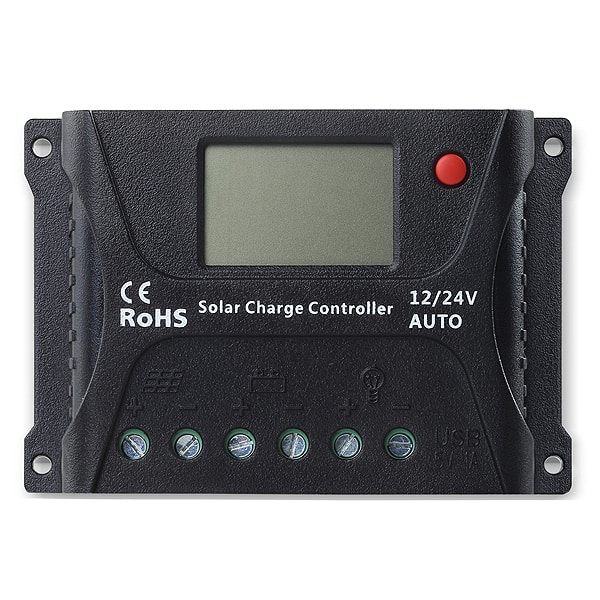

SR-HP2410 – PWM SOLAR CHARGE CONTROLLER (12/24V, 10A)

Product Enquiry

FEATURES

  • 12V or 24V Operation (Automatic)
  • 3-Stage PWM Charging Algorithm
  • Temperature Compensated.
  • A wide range of load working modes facilitate the product’s application to different types of load.
  • The product provides overcharge, over-discharge, overload protection, as well as short-circuit protection.
  • By virtue of an advanced load starting method, large-capacitive loads can be started smoothly.
  • Dot matrix graphic LCD screen.
  • TVS lighting protection.

SPECIFICATIONS:

ModelHP2410HP2420HP2420-S
Rated current10A20A20A
current display functionNoNoYes
System voltageAutomatic recognition of 12 V/ 24 V
No-load loss< 10mA/12V;< 12mA/24V
Max. Solar energy input voltage<55V
Max. voltage
at the battery end
<35V
Overvoltage protection17.0V;×2/24V;
Equalizing charging
voltage
14.6V;×2/24V;
Boost charging voltage14.4V;×2/24V;
Floating charging voltage13.8V;×2/24V;
Charging recovery voltage13.2V;×2/24V;
Over-discharge recovery voltage12.6V;×2/24V;
Over-discharge voltage11.1V;×2/24V;
Equalizing charging interval30days
Equalizing charging time1H
Boost charging time2H
Temperature
compensation
-3.0mV/℃/2V
Light control voltageLight control on 5V, ×2/24V;
light control off 6V, ×2/24V;
Light control
judgment time
1minute
Operating temperature-25℃ to +55℃;
IP protection degreeIP30
Net  weight100g160g
Protection functionsSolar panel short circuit and reverse-connection protection
Over-temperature, overload and short circuit protection
Dimensions103×71×36(mm)130×75×38 (mm)
