3D Printing

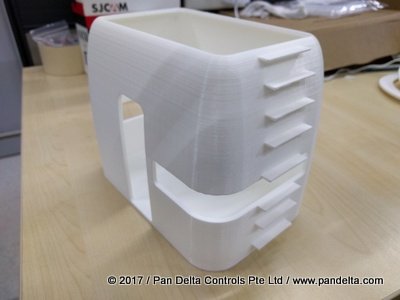

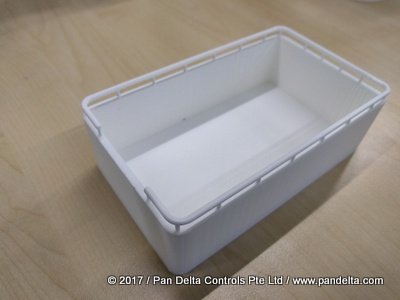

IMG 20161107 163722 IMG 20161108 104047

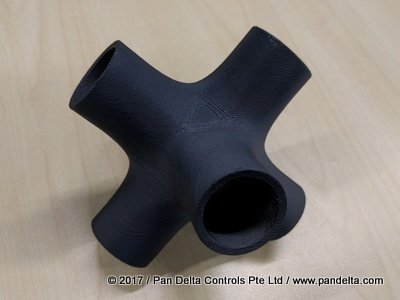

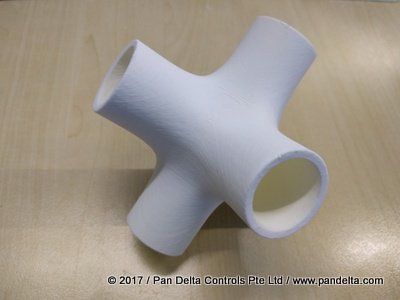

IMG 20161110 094849 IMG 20161128 094831

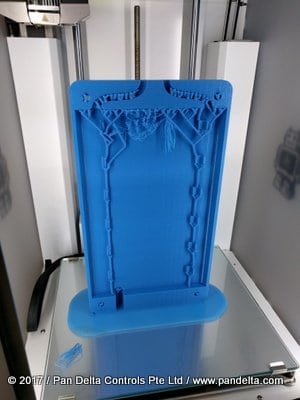

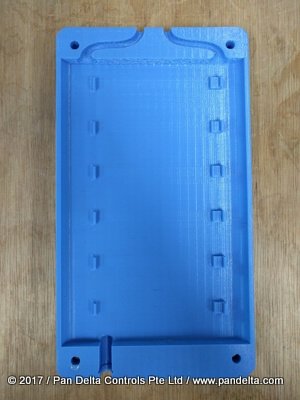

IMG 20161130 092701 IMG 20161130 112419

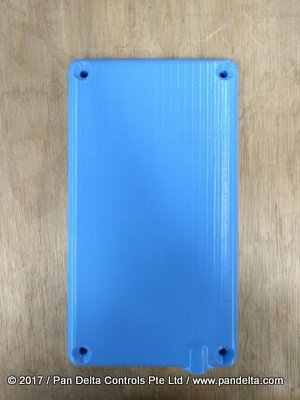

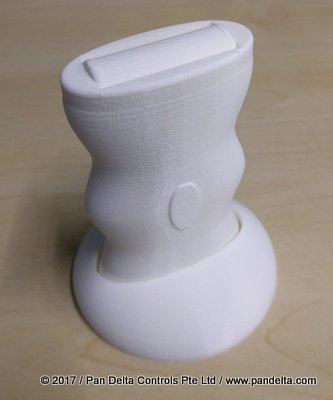

IMG 20161130 112543 IMG 20160901 180620

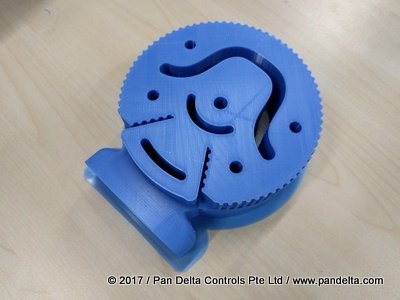

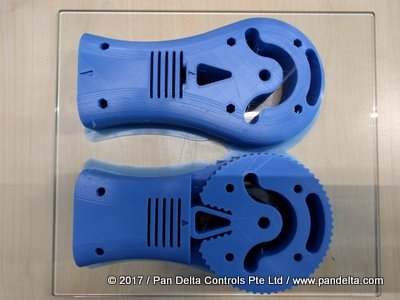

IMG 20170121 124424 IMG 20170202 110322

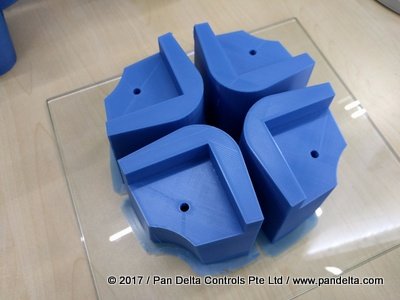

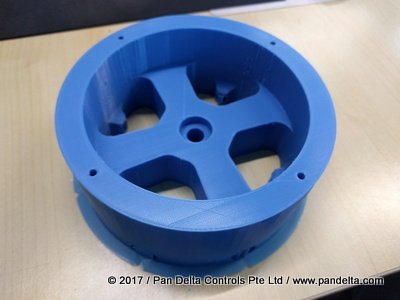

IMG 20170126 155844 IMG 20170202 111920

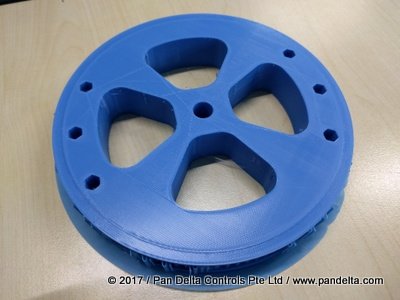

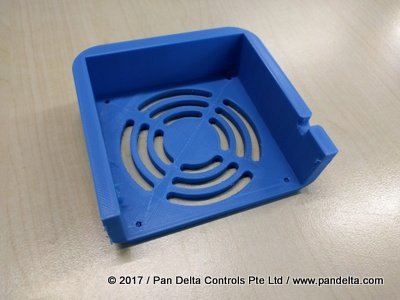

IMG 20170202 111203 IMG 20170202 111742

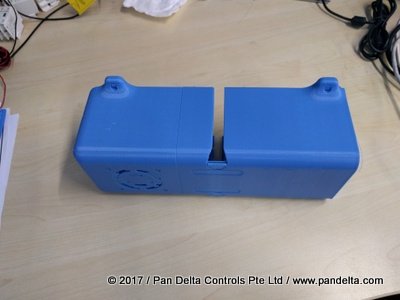

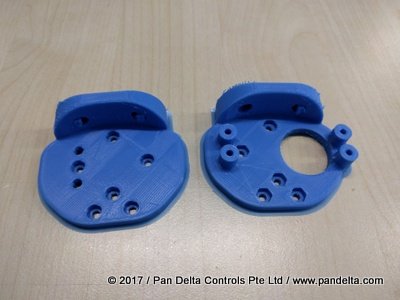

IMG 20170202 113150 IMG 20170203 111256

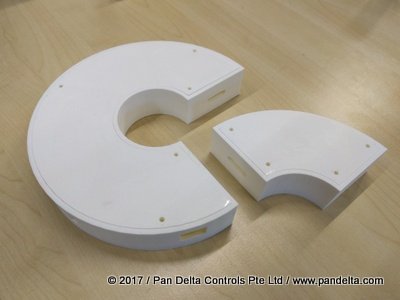

IMG 20160923 152837 IMG 20161107 160216



3d Printing Machine

Engineered to perform, the Ultimaker 2+ is reliable, efficient, and user-friendly. Thanks to its support of a wide range of materials, it’s suitable for a huge variety of applications, from prototypes to customized tools. It’s a great all-around 3D printer that delivers consistent results.

3d Printing Machine

Build Volume: 223 x 223 x 305mm
Materials: Open filament system, optimized for PLA, ABS. CPE, CPE+, PC, Nylon, TPU 95A
Layer Resolution: 600 microns down to 20 micron
Build Speed: Up to 24mm³/s
Travel Speed: Up to 300mm/s

 Ultimaker 2 Plus components front2x

Ultimaker 2 Plus components back2x

Ultimaker2Extended Dimensions



Dimensions and Weight with Bowden Tube & Spool342 x 493 x 688 mm

Weight: 12.3 kg

Build Volume: 223 x 223 x 305 mm



 Printer and printing properties

Assembly type
Pre-assembled
Layer Resolution
0.25 mm nozzle: 150 to 60 micron
0.40 mm nozzle: 200 to 20 micron
0.60 mm nozzle: 400 to 20 micron
0.80 mm nozzle: 600 to 20 micron
Build plate
50 °C to 100 °C heated glass build plate
Build plate leveling
Assisted leveling process
Print technology
Fused Deposition Modeling (FDM)
Print head
Swappable nozzle
Build speed
0.25 nozzle: up to 8 mm³/s
0.40 nozzle: up to 16 mm³/s
0.60 nozzle: up to 23 mm³/s
0.80 nozzle: up to 24 mm³/s
Print head travel speed
30 to 300 mm/s
Feeder type
Geared feeder
XYZ accuracy
12.5, 12.5, 5 micron
Nozzle diameter
Included are 0.25, 0.4, 0.6 and 0.8 mm nozzles
Nozzle temperature
180 °C to 260 °C
Nozzle heat up time
~ 1 minute
Build plate heat up time
< 4 minutes
Operating sound
50 dBA

Materials

System
Open filament system
Filament diameter
2.85 mm
Supported materials
PLA, ABS, CPE, CPE+, PC, Nylon, TPU 95A
Ultimaker filament
A spool of Ultimaker filament is 750 g

Requirements

Software
Cura, our free print preparation software
Supported OS
Free on macOS, Windows and Linux
Supported file types
STL, OBJ and AMF
File transfer
Standalone 3D printing from SD card (included)
Operating ambient temperature
15 °C to 32 °C (59 °F to 90 °F)
Nonoperating temperature
0 °C to 32 °C (32 °F to 90 °F)
Input
100 - 240V
4A, 50-60Hz
221 W max.
Output
24 V DC, 9.2 A



















Why print with us?

Able to Print PLA, ABS, CPE Materials





Affordable Prices



Build Volume of up to 223 x 223 x 305 mm (8.8 x 8.8 x 12")





Layer Resolution down to 20 microns





Bring your Prototypes to life in 3 easy steps:

1. EMAIL YOUR 3D DESIGN IN .STL FORMAT TO sales@pandelta.com

2. WAIT FOR OUR QUOTATION

3. PICK UP YOUR ORDER (OR HAVE IT SHIPPED TO YOU)



OR



1. SEND US YOUR ENQUIRIES VIA 3D HUB.

VISIT: https://www.3dhubs.com/singapore/hubs/pan-delta





Request for Quote

Our Address:
10 Admiralty Street,
#04-76, North Link Building,
Singapore 757695
Hours of Operation:
Mon. to Fri.: 8.30am to 6.00pm
Weekends & Public Holidays: Closed
